6.    Keyboards

The Tru64 UNIX operating system software supports the following Thai keyboard types:

• LK201-T
• LK401-T
• LK443-T
• PCXAL

6.1    Keyboard Layout

The figures in this chapter show the keyboard layouts for the Thai input methods. You can find online copies of these figures at the locations specified. These figures are in .ddif format.

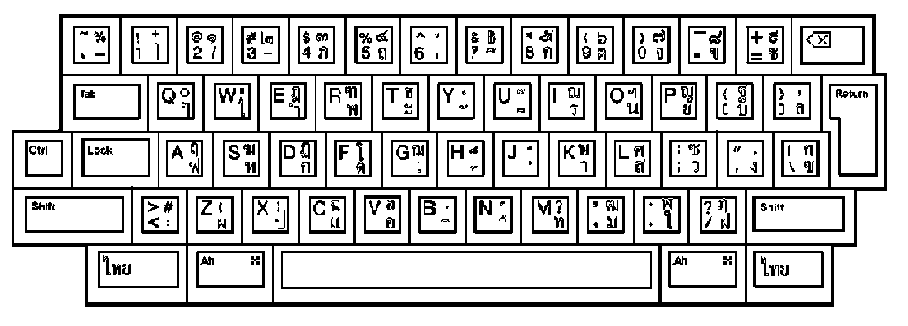

Figure 6-1: LK201-T Keyboard Layout

Required Keymap:	thai lk201t
Mode:	Thai Mode (Gatemanee keyboard used in VT382-T)
Location of File:	/usr/lib/cda/thai-lk201t-100.ddif

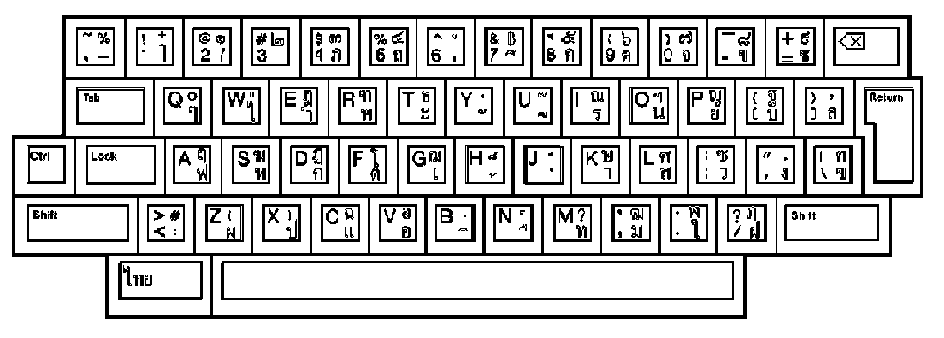

Figure 6-2: LK401-T Keyboard Layout

Required Keymap:	thai lk201wtt
Mode:	Thai Mode (Gatemanee keyboard used in VT382-T)
Location of File:	/usr/lib/cda/thai-lk401t-100.ddif

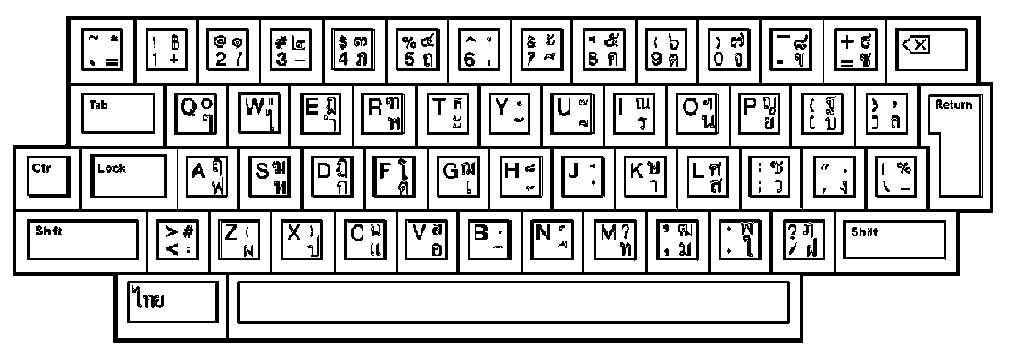

Figure 6-3: LK201-WTT Keymap Layout

Required Keymap:	thai lk201wtt
Mode:	Thai Mode (defined in WTT V2.0)
Location of File:	/usr/lib/cda/thai-lk201wtt-100.ddif

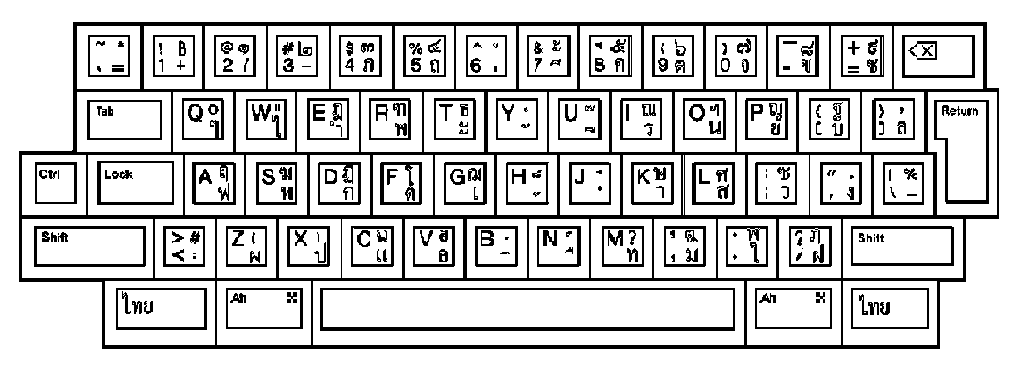

Figure 6-4: LK401-WTT Keymap Layout

Required Keymap:	thai lk401wtt
Mode:	Thai Mode (defined in WTT V2.0)
Location of File:	/usr/lib/cda/thai-lk401wtt-100.ddif

6.2    Keyboard Indicator

If you are using XDM, the keyboard indicator (kb_indicator) is automatically activated by the session manager and controls the compose lamp of the Thai keyboards. To start the keyboard indicator, the following command has been added to Automatic Startup menu of Session Manager:

"/usr/bin/X11/kb_indicator   -map"

Compose status is displayed in the keyboard indicator window. A button in the keyboard indicator window controls the compose mode like the compose key on the keyboard.

If you are using CDE, you can manually execute the preceding command, or add it to your personal profile.
